Description

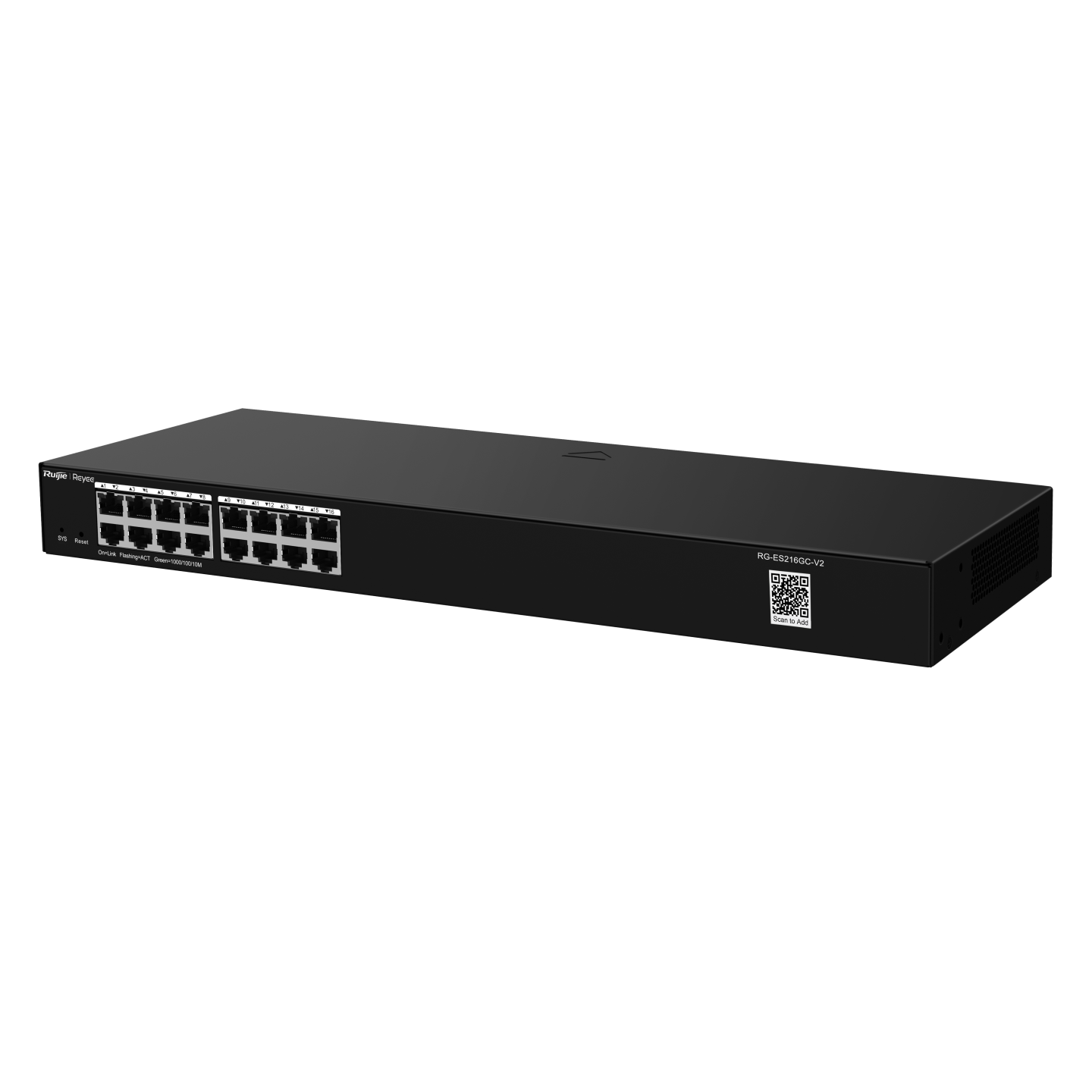

The RG-ES216GC-V2 is a high-performance 16-Port Gigabit Smart Cloud Managed Non-PoE Switch designed for small and medium-sized businesses, offices, retail shops, hotels, schools, and CCTV surveillance networks. It provides 16 Gigabit RJ45 ports for fast and stable network connectivity, ensuring smooth data transmission for multiple connected devices.
This Layer 2 smart managed switch supports Ruijie Cloud management, allowing users to remotely monitor, configure, and manage the network anytime and anywhere through the Ruijie Cloud platform or Reyee App. It includes advanced networking features such as VLAN, QoS, Loop Prevention, Port Isolation, DHCP Snooping, Broadcast Storm Suppression, and Flow Control to improve network security, efficiency, and reliability.
With a switching capacity of 32Gbps and a forwarding rate of 23.81Mpps, the RG-ES216GC-V2 delivers stable performance even under heavy network traffic. Its fanless metal design ensures silent operation and long-term durability, while 4kV–6kV surge protection helps protect the switch from electrical damage. The switch also supports rackmount installation, making it suitable for professional networking environments and server rooms.
| Feature | Details |
|---|---|
| Model | RG-ES216GC-V2 |
| Switch Type | Smart Cloud Managed Non-PoE Switch |
| Layer Type | Layer 2 |
| Ports | 16 × 10/100/1000Mbps RJ45 Ports |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.81Mpps |
| MAC Address Table | 8K |
| VLAN Support | Up to 16 VLANs |
| Management | Ruijie Cloud, Reyee App, Web GUI |
| Network Features | VLAN, QoS, Loop Prevention, Port Isolation, DHCP Snooping |
| Security Features | Broadcast Storm Suppression, Flow Control |
| Surge Protection | 4kV–6kV |
| Cooling System | Fanless Design |
| Mounting Type | Desktop & Rackmount |
| Power Consumption | ≤12W |
| Power Supply | AC 100V–240V |
| Operating Temperature | 0°C to 50°C |
| Body Material | Metal Housing |
| Dimensions | 440 × 165 × 44 mm |
| Warranty | 3 Years |
