Description

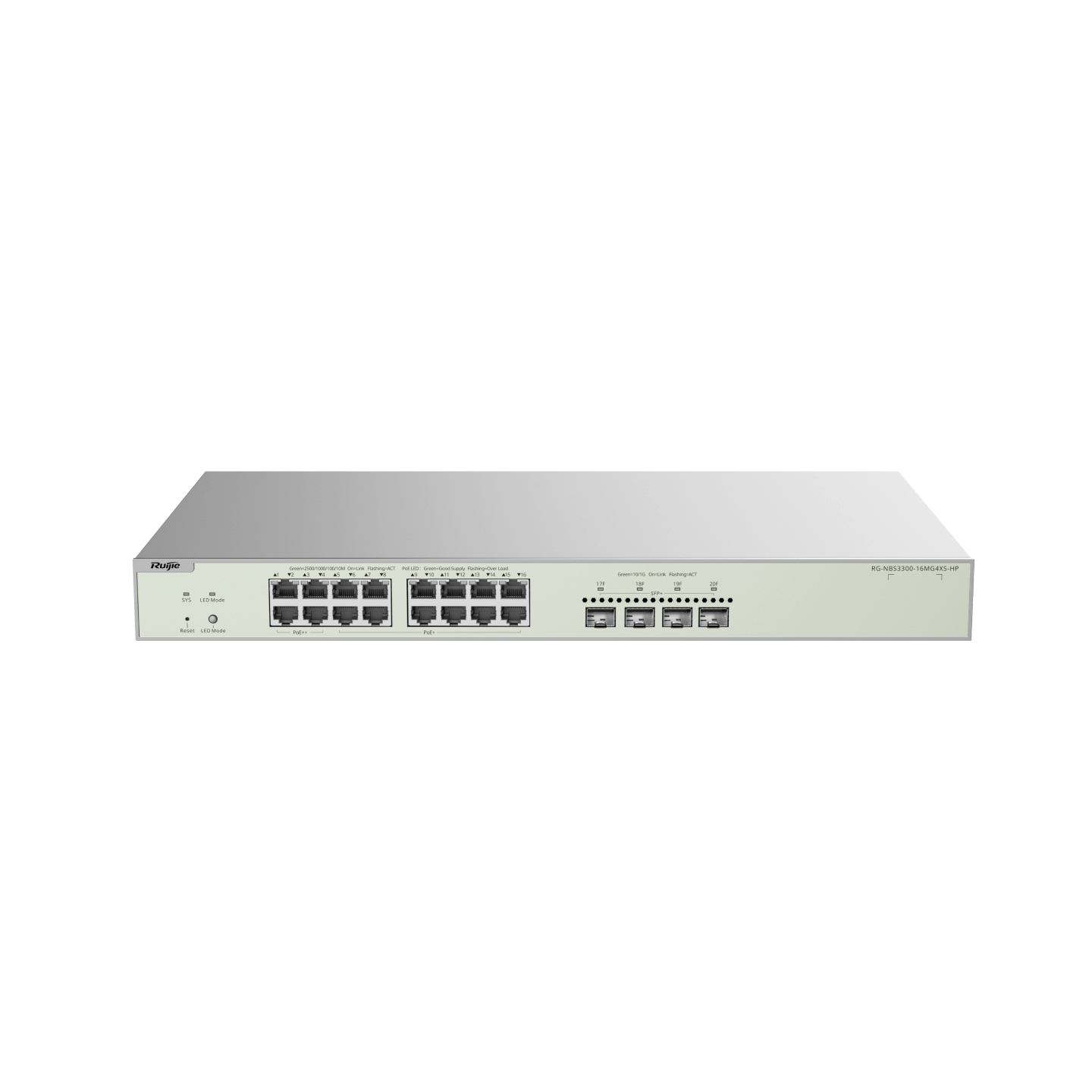

The Ruijie Reyee RG-NBS3300-16MG4XS-HP is a high-performance enterprise-grade Layer 3 cloud-managed multi-gigabit PoE switch engineered for large-scale Wi-Fi 6/6E deployments, high-density enterprise networks, smart campuses, hospitality infrastructure, surveillance systems, and bandwidth-intensive business environments. Built for next-generation network demands, this switch delivers ultra-fast 2.5G access ports, high-power PoE++, advanced Layer 3 routing intelligence, and ultra-fast 10G fiber uplinks, making it a future-ready networking solution for organizations that require speed, scalability, and centralized control.
The switch is equipped with 16 multi-gigabit 100M/1G/2.5G PoE++ Ethernet ports along with 4 × 10G SFP+ uplink ports, allowing seamless connectivity for Wi-Fi 6/7 access points, high-speed servers, storage systems, workstations, IP surveillance infrastructure, and aggregation backbone links. This architecture ensures that network bottlenecks are eliminated and high-throughput applications perform efficiently even under heavy traffic loads.
With a powerful 400W PoE budget, the RG-NBS3300-16MG4XS-HP can directly power multiple enterprise-class wireless APs, PTZ cameras, VoIP phones, smart IoT gateways, and advanced edge devices without requiring external injectors. This significantly simplifies deployment while reducing installation cost and cable complexity.
The switch supports advanced Layer 3 static routing, inter-VLAN routing, ACL traffic filtering, QoS prioritization, multicast optimization, DHCP snooping, LACP aggregation, and enterprise redundancy protocols, ensuring optimized traffic performance, network segmentation, and business-grade security.
Integrated with Ruijie Reyee Cloud Management, administrators can remotely configure, monitor, troubleshoot, visualize topology, push firmware updates, and perform proactive maintenance from anywhere using the Reyee mobile app or web dashboard. This cloud ecosystem dramatically improves operational efficiency and reduces management overhead.
Built with industrial-grade 6kV surge protection, intelligent cooling fan control, high-efficiency power design, and enterprise reliability standards, the RG-NBS3300-16MG4XS-HP is ideal for continuous 24/7 mission-critical operation.
| Specification | Details |
|---|---|
| Product Model | RG-NBS3300-16MG4XS-HP |
| Product Type | Layer 3 Cloud Managed Multi-Gigabit PoE Switch |
| Access Ports | 16 × 100M/1G/2.5G RJ45 PoE++ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af / at / bt |
| PoE Budget | 400W Total |
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.8 Mpps |
| MAC Address Table | 16K Entries |
| Layer Support | Layer 2 / Layer 3 Static Routing |
| Routing Features | Static Routing / Inter-VLAN Routing |
| VLAN Support | Up to 4094 VLANs |
| ACL Support | Advanced Access Control Lists |
| QoS Support | 802.1p / DSCP / Queue Scheduling |
| Multicast Support | IGMP Snooping / MLD Snooping |
| Link Aggregation | LACP Supported |
| STP Protocols | STP / RSTP / MSTP |
| DHCP Features | DHCP Snooping / DHCP Relay |
| Jumbo Frame | Up to 12KB |
| Surge Protection | 6kV |
| Cloud Management | Reyee Cloud / Mobile App / Web Dashboard |
| Cooling System | Intelligent Smart Fan |
| Power Supply | AC 100–240V |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 × 350 × 44 mm |
| Mounting Type | Standard 1U Rack Mount |
| Weight | Approx. 5.5 kg |
| Warranty | 3 Years (Region dependent) |
