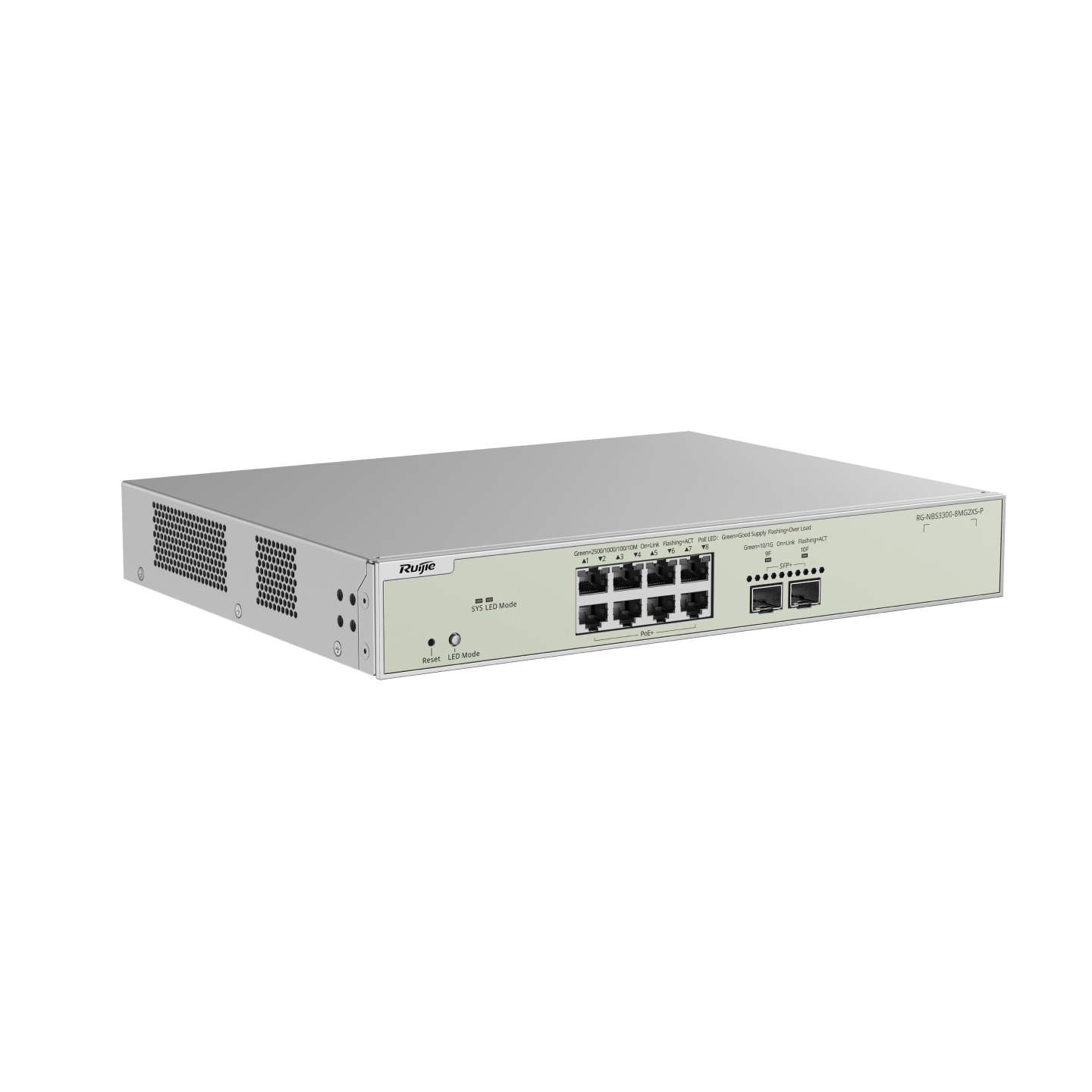

Description
The Ruijie Reyee RG-NBS3300-8MG2XS-P is a high-performance Layer 3 cloud-managed multi-gigabit PoE switch designed for modern enterprise networks, Wi-Fi 6/6E deployments, smart offices, surveillance systems, hospitality environments, and bandwidth-intensive business applications. Built to support next-generation network infrastructure, this switch combines ultra-fast 2.5G connectivity, powerful PoE delivery, advanced Layer 3 routing intelligence, and high-speed 10G uplinks to deliver exceptional network performance and scalability.
This switch features 8 × 100M/1G/2.5G RJ45 PoE+ access ports and 2 × 10G SFP+ uplink ports, enabling high-speed connections for Wi-Fi 6/7 access points, workstations, servers, NAS storage, surveillance cameras, and enterprise aggregation links. The multi-gigabit architecture removes traditional Gigabit bottlenecks, ensuring maximum throughput for data-heavy applications and seamless wireless performance.
With a 240W total PoE budget, the RG-NBS3300-8MG2XS-P can directly power multiple wireless access points, IP cameras, VoIP phones, and IoT devices through Ethernet, reducing installation complexity and eliminating the need for additional power injectors. This makes deployment cleaner, more efficient, and cost-effective for professional environments.
The switch supports advanced Layer 3 static routing, inter-VLAN routing, QoS prioritization, ACL traffic control, multicast optimization, DHCP snooping, link aggregation, and intelligent redundancy protocols, ensuring secure traffic segmentation, reliable bandwidth allocation, and optimized network stability for business-critical operations.
Integrated with Ruijie Reyee Cloud Management, administrators can remotely configure, monitor, troubleshoot, update firmware, visualize topology, and manage network performance from anywhere using the Reyee app or cloud dashboard. This centralized management greatly simplifies enterprise-scale deployment and maintenance.
Built with industrial-grade surge protection, intelligent cooling design, robust hardware architecture, and 24/7 operational reliability, the RG-NBS3300-8MG2XS-P is a future-ready solution for demanding enterprise networking scenarios.
| Specification | Details |
|---|---|
| Product Model | RG-NBS3300-8MG2XS-P |
| Product Type | Layer 3 Cloud Managed Multi-Gigabit PoE Switch |
| Access Ports | 8 × 100M/1G/2.5G RJ45 PoE+ |
| Uplink Ports | 2 × 10G SFP+ |
| PoE Standard | IEEE 802.3af / at |
| PoE Budget | 240W Total |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K Entries |
| Layer Support | Layer 2 / Layer 3 Static Routing |
| Routing Features | Static Routing / Inter-VLAN Routing |
| VLAN Support | Up to 4094 VLANs |
| ACL Support | Advanced Access Control Lists |
| QoS Support | 802.1p / DSCP Priority Scheduling |
| Multicast Support | IGMP Snooping / MLD Snooping |
| Link Aggregation | LACP Supported |
| STP Protocols | STP / RSTP / MSTP |
| DHCP Features | DHCP Snooping / Relay |
| Jumbo Frame | Up to 12KB |
| Surge Protection | 6kV |
| Cloud Management | Reyee Cloud / Mobile App / Web Dashboard |
| Cooling System | Intelligent Smart Fan |
| Power Supply | AC 100–240V |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 × 260 × 44 mm |
| Mounting Type | Standard 1U Rack Mount |
| Weight | Approx. 3.8 kg |
| Warranty | 3 Years (Region dependent) |
