Description

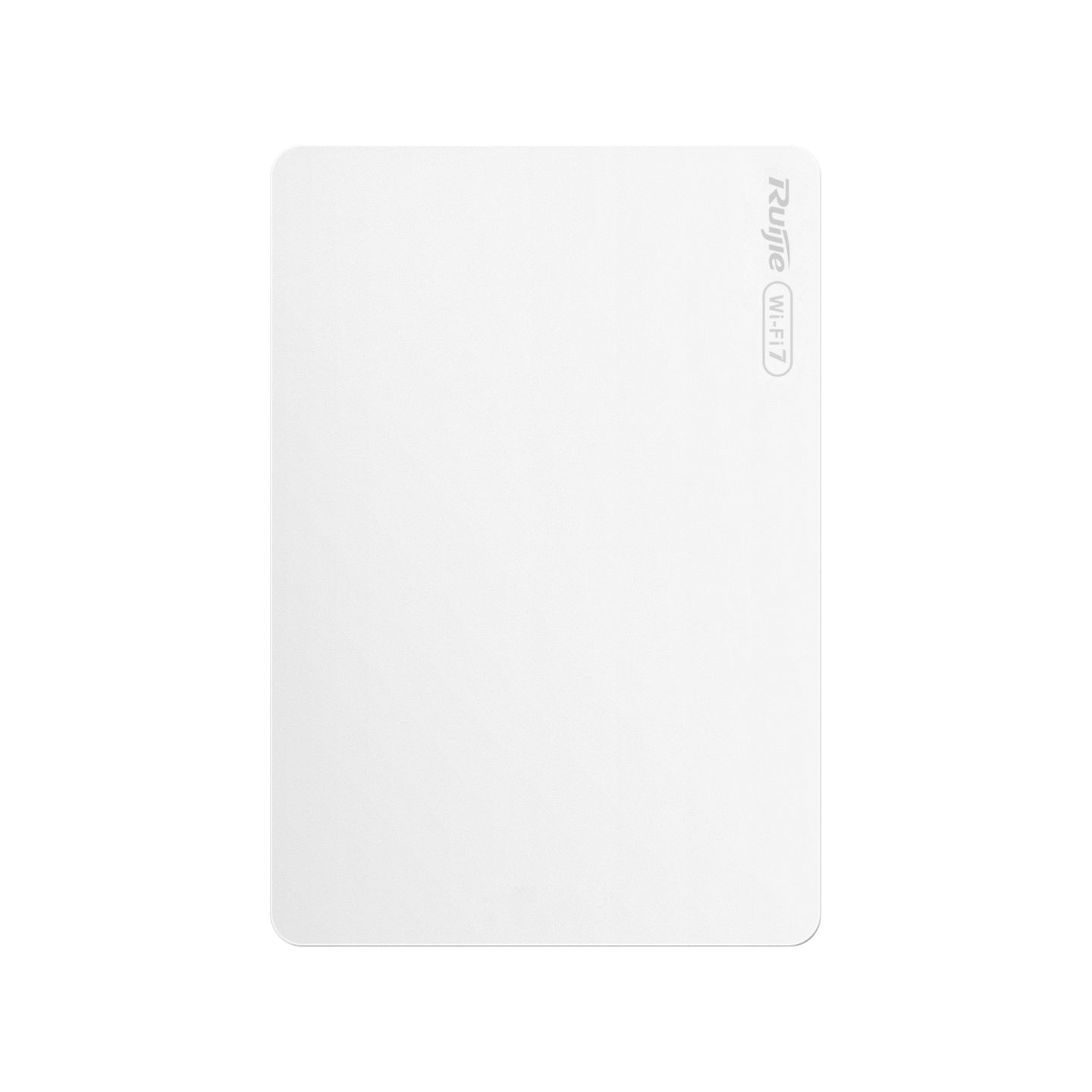

The Ruijie Reyee RG-RAP72 is a next-generation enterprise-grade Wi-Fi 7 ceiling-mounted access point designed for modern offices, hotels, conference rooms, smart homes, educational institutions, and commercial indoor deployments. Built with advanced IEEE 802.11be (Wi-Fi 7) technology, this powerful access point delivers combined wireless speeds of up to 3570Mbps, ensuring lightning-fast connectivity for 4K/8K streaming, cloud applications, online collaboration, gaming, and high-density multi-user environments. It is engineered to provide future-ready wireless infrastructure at an affordable enterprise-class level.
The device features dual-band 2×2 MU-MIMO architecture with 688Mbps on 2.4GHz and 2882Mbps on 5GHz, delivering highly efficient traffic management and lower latency for multiple simultaneous connections. Equipped with Wi-Fi 7 technologies such as Multi-Link Operation (MLO), 4K-QAM modulation, Preamble Puncturing, and Multiple Resource Units (MRU), the RG-RAP72 significantly improves throughput, stability, and wireless efficiency compared to previous Wi-Fi generations.
Its built-in enterprise-level AI optimization (WIO 3.0) continuously tunes signal performance for maximum wireless coverage and connection quality. The modern circular compact design blends naturally into professional interiors while maintaining excellent signal distribution through optimized omnidirectional antenna placement. It is ideal for businesses seeking both aesthetics and performance.
The RG-RAP72 includes a 2.5GbE multi-gig uplink port, ensuring the wired backhaul can fully support Wi-Fi 7 wireless capacity without bottlenecks. It supports PoE/PoE+ and local DC power input, offering flexible deployment options. Combined with Ruijie Cloud centralized management, Reyee Mesh networking, standalone AP portal authentication, AI roaming, heatmap visualization, and remote troubleshooting, this access point provides simple deployment and enterprise-level management. Community feedback also generally praises Reyee hardware for strong performance and cost efficiency.
| Specification | Details |
|---|---|
| Product Model | RG-RAP72 |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless Technology | Wi-Fi 7 (BE3600) |
| Frequency Bands | Dual-Band (2.4GHz + 5GHz) |
| Maximum Wireless Speed | 3570 Mbps |
| 2.4GHz Speed | 688 Mbps |
| 5GHz Speed | 2882 Mbps |
| 6GHz Support | No |
| MIMO Technology | 2×2 MU-MIMO |
| Spatial Streams | 4 Streams |
| Channel Width | Up to 320MHz |
| Modulation | 4K-QAM |
| Multi-Link Operation (MLO) | Supported |
| Preamble Puncturing | Supported |
| MRU Technology | Supported |
| Antenna Type | Built-in Omnidirectional |
| Ethernet Ports | 1 × 2.5GbE RJ45 |
| Power Supply | PoE / PoE+ / DC 12V |
| Maximum Power Consumption | ≤14W |
| Maximum Wireless Clients | 511 Concurrent Clients |
| Managed Device Capacity | Up to 300 Devices |
| Cloud Management | Supported |
| Reyee Mesh | Supported |
| WIO 3.0 Optimization | Supported |
| Portal Authentication | Supported |
| IPv6 Support | Yes |
| Mounting Options | Ceiling / Wall Mount |
| Operating Temperature | 0°C to 40°C |
| Protection Rating | IP41 |
| Dimensions | Ø195 × 41 mm |
| Weight | ≤0.6kg |
| Color | White |
| Certification | CE / FCC / RoHS |
